Description

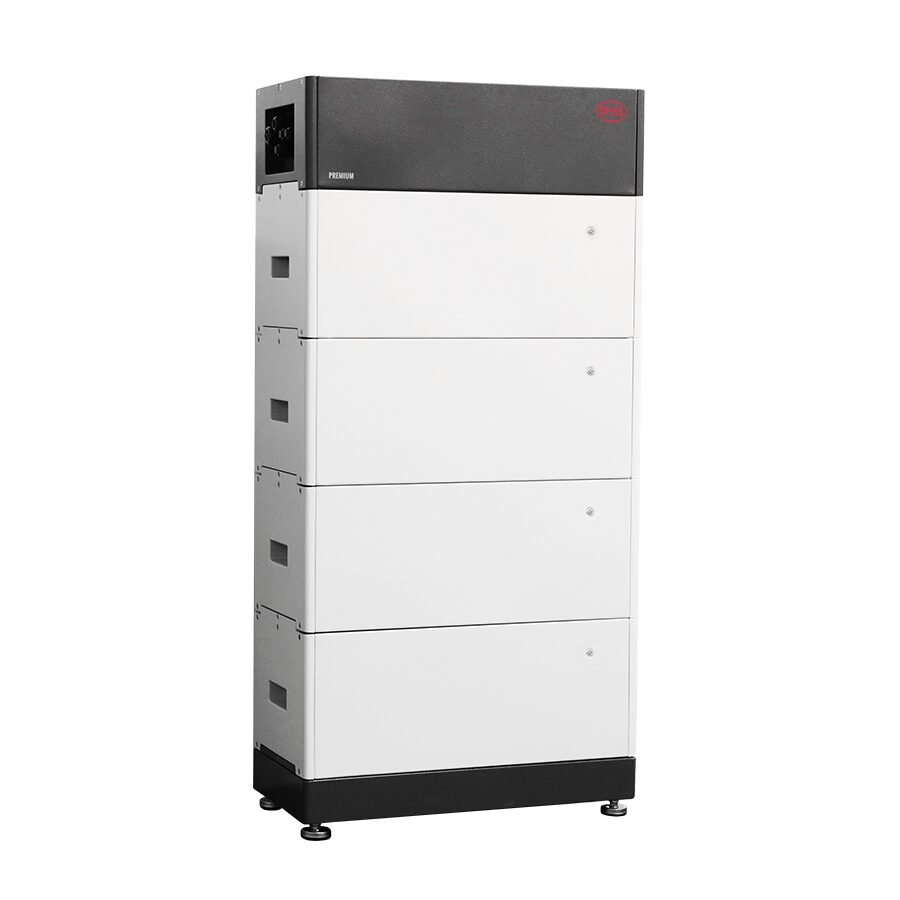

BYD Battery-Box Premium LVS 4kW
The BYD Battery-Box Premium LVS is a lithium iron phosphate (LFP) battery pack for use with an external inverter.
A single Battery-Box Premium LVS contains between 1 to 6 ot these battery modules, stacked in parallel, and can reach 4 to 24.0 kWh usable capacity in one tower (or stack). The battery is rated IP55 (outdoor use).
| BYD Premium – 4.0kWh – 48V | |
|---|---|
| Nominal energy | 4.0kWh |
| Usable energy | 4.0kWh |
| Nominal capacity | 78Ah |
| Cont. discharge current | 65A |
| Peak discharge current | 90A |
| Nominal voltage | 51.2V |
| Voltage range (DC) | 40V – 57.6V |
| Enclosure Protection Rating | IP55 |
| Chemistry | Lithium Iron Phosphate (LFP) |
| Operating temperature range | -10 – +50°C |
| Optimal temperature range | 5 – 50°C |
| Dimensions (HxWxD) | 233 x 650 x 298mm |
| Net weight | 45 kg |
| Model | LVS 4.0 |
| Manufacturer | BYD |
